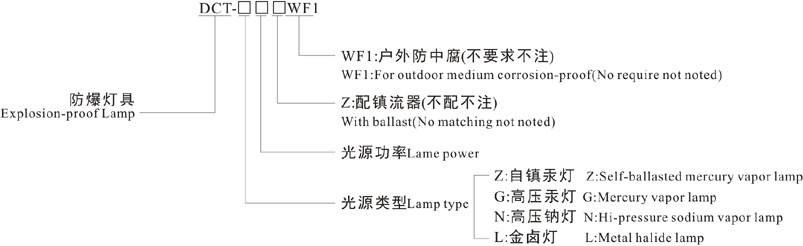

型號含義 Model implication
適用范圍 Application
1、適用于1區，2區危險場所。
2、適用于ⅡA、ⅡB、ⅡC類爆炸性氣體環境。
3、可配裝汞燈、高壓鈉燈、金鹵燈。
注:要求ⅡC類時請注明。
1、Can be used in Zonea 1 and2 dangerous places.
2、Can be used inⅡA、ⅡB、ⅡC group explosive atmosphere.
3、Suitable for incandescent lamp.
Notice:Please note if need ⅡC group.
產品特點 Features
1、鑄鋁合金外殼，壓鑄成形，表面噴塑。
2、燈體可在水平安裝或壁式安裝，仰角在45°~90°內可調。
3、采用側面開蓋，便于更換燈炮。
4、采用桔紋漫反射板，使光線柔和且照射角度大。
5、電纜布線。
6、符合GB3836-2000，IEC60079標準要求。
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、Horizontal mounting or wall installing is available, elevation angle is adjustable from45°to 90°
3、The side is opened, which is easy for installing and maintaining lamp.
4、Adopting reflection plate like orange surface so as to make light soft and have large range of illumination.
5、Suitable for cable wiring.
6、Suitable for GB3836-2000, IEC60079 standard request.
主要技術參數 Main technical parameters
配用光源 Supplied with lamps

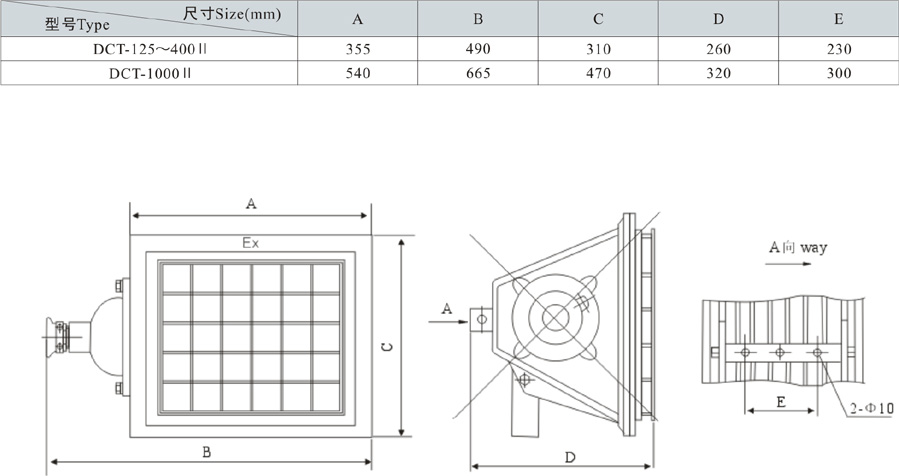

外形及安裝舉例 Outline and mounting example
